ODL-3-320300-342SBE

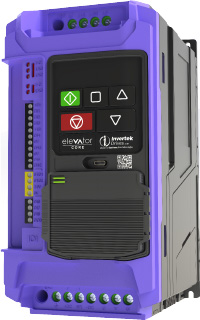

Optidrive Elevator Core VFD Datasheet
7.5 kW (10 HP), 30 A, 200-240 V, 3PH IP20 Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 3 |
| Supply Current Continuous | A |
| Supply Fuse or MCB (Type B) | A |
Output Ratings
| Motor Output Rating | 7.5 kW (10 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 30 A |
Cable Information
| Max Supply Cable Size | – |
| Max Motor Cable Size | – |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP20 |
| Display | LED |
| PCB Coating | Full Conformal |
Drive Dimensions
i
| Size | 3 |
| Height | 261 mm (10.28 in) |
| Width | 131 mm (5.16 in) |
| Depth | 207 mm (8.15 in) |
| Weight | 3.72 kg (8.2 lbs) |
| Fixings | 4xM5 |
Packaged Dimensions
i
| Height | 242 mm (9.53 in) |
| Width | 165 mm (6.5 in) |
| Depth | 364 mm (14.33 in) |
| Weight | 4.34 kg (9.57 lbs) |
